   "Gaussmeter"

Gaussmeters are instruments to measure the magnetic field density in a specific point in the air.

 B = F / A
where:

B = Magnetic Field in [T]
F = Magnetic Flux in  [V.s] = [T.m2] = [Wb]
A = Cross Section  [m2]

Note:
1[T ]= 10000 [Gauss]


 Gaussmeters can be used in many applications:
  • Measurement of magnetic field on the surface of magnets
  • Measurement of magnetic field in the gap of loudspeakers.
  • Measurement of residual magnetization on mechanical parts
  • Measurement of magnetic field of solenoids, electromagnets, etc.



"Gaussmeter"
 TLMP-HALL series

Low cost and resist instrument. These gaussmeters are single scale and are recomended for magnetic field measurements in industrial areas.
DC Models with one full scale - FS

TLMP-HALL-20k    ± 20000 gauss (DC)
TLMP-HALL-15k    ± 15000 gauss (DC)
TLMP-HALL-10k    ± 10000 gauss (DC)
TLMP-HALL-05k    ± 5000 gauss (DC)
TLMP-HALL-02k    ± 2000 gauss (DC)
TLMP-HALL-01k    ± 1000 gauss (DC)
TLMP-HALL-300   ± 300 gauss (DC)
TLMP-HALL-200   ± 200 gauss (DC)
TLMP-HALL-100   ± 100 gauss (DC)
TLMP-HALL-050   ± 50 gauss (DC)

Precision: +/-2% of reading +/- 1% of FS
Functions: DC Field, Peak DC, Polarity (North /South).
LCD:  -  16 x 2 lines
Resolution:  1/1000  of FS.
9V battery operation
Made in Brazil



__________________________________________





GAUSSMETER

TLMP-HALL





"Gaussmeter"

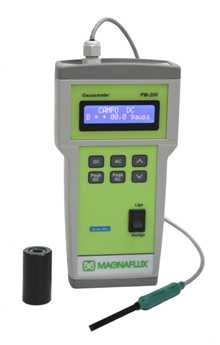

  PM200

Technology


PM200 is a low cost and sturdy instrument. PM200 was developed by GLOBALMAG for magnetic particle non-destrutive testing. PM200 is produced exclusively for ITW Chemical in Brazil. ITW Chemical is the proprietary of MAGNAFLUX brand.


PM200      ±  200 gauss  (DC/AC true RMS)

Precision: +/-2% of reading +/- 1% of FS
Functions: DC Field, AC Field, Peak DC and Peak AC.
LCD:  -  16 x 2 lines
Resolution:  1/1000  of FS.
9V battery operation
Made in Brazil
This product is commercialized exclusively by ITW Chemical in Brazil . Phone: + 55 11 4785 2660  (www.itwchem.com.br)







  PM200
